The current G3XBM (operating) shack

G3XBM QRP shack in a bedroom corner

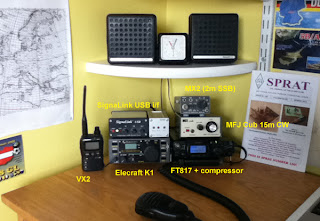

Thought readers might like to see what the G3XBM station consists of currently.  In the photo I have annotated most pieces. The little silvery box to the right of the SignaLink interface was a VX2 programmer (software for which crashed my PC a year ago), but this box  is to be used to house my WISPY 10m WSPR beacon transceiver. The K1 was last used yesterday and the FT817 gets almost daily use, with the very nice audio speech processor underneath. Not shown are the lightbeam kit or the LF and MF tranverters for 136 and 472kHz which are housed elsewhere close the the earth-electrode antenna feed. There are also several homebrew rigs in drawers that get brought out from time to time. For the time being, the Elecraft K1 is not being sold.

The maximum power I can run currently is around 7W from the K1 and about 12W out on 472kHz from the transverter (about 5-10mW ERP) and 30W from the 136kHz transverter (about 50uW ERP). I have no great desire to run much more power. The FT817 is only used at 2.5W or less.

2 comments:

Dick said...

Looks a s good as ever, Roger.

Michael Reichardt said...

Hallo Roger, congrats for this great QRP Shack! 73 de Michael, dl2ymr.de
